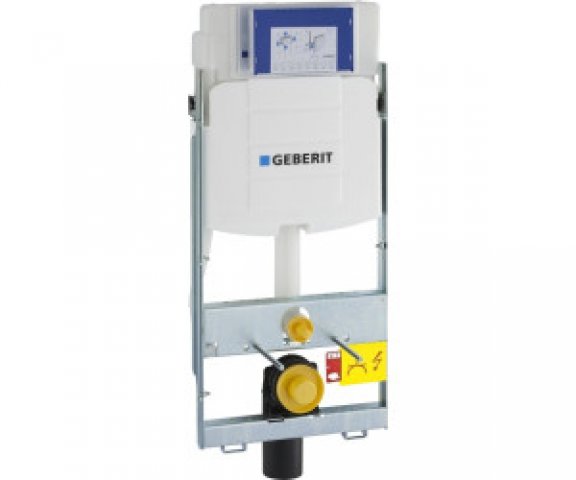

Geberit GIS wall-mounted toilet element UP320 114 cm, with Sigma flush-mounted cistern 12 cm, for operation from the front

In stock (2 Days)
328,20 € *
188,25 €

free delivery

We check your order
461.311.00.5
2.00 Points
description
  • Geberit GIS wall-mounted WC element UP320
  • For installation in the GIS support system for pre-wall, partition wall and free-standing wall
  • Suitable for floor construction 0 - 20 cm
  • System drywall element
  • Support frame with 4 quick fasteners, height adjustable, galvanized
  • Ceramic fasteners M12, fastening distance 18 cm or 23 cm
  • Wall-mounted toilet bow depth-adjustable in 8 positions, adjustment range 45 mm, sound-insulated fastening
  • UP320 concealed cistern with front actuation, 25 years spare parts guarantee
  • UP cistern for tool-free installation and tool-free service work
  • Flush-mounted cistern with condensation water insulation
  • Building protection for service opening can be mounted without tools and can be cut to length without tools
  • Flush volume adjustable
  • Immediate flushing possible with factory setting
  • Water connection at the back/top in the middle
  • Connecting hose to angle valve can be screwed without tools
  • Sound-insulated handle rods, quick adjustment without tools
  • 2-flush with actuator plate Sigma50, Sigma20, Samba or Bolero
  • 1-flush with actuator plate Sigma10

Maximize your comfort: The Geberit GIS wall-mounted WC installation element

The Geberit GIS wall-mounted WC mounting element UP320 is an innovative product that takes the installation of your wall-mounted WC to a new level. It is perfect for installation in the GIS support system for pre-wall, partition or free-standing wall and can be used in a floor build-up of 0 - 20 cm without any problems.

This system drywall element consists of a galvanized support frame with four quick fasteners that are adjustable in height. In addition, it includes ceramic fasteners M12 with a mounting distance of 18 cm or 23 cm. The wall-mounted toilet arch is depth-adjustable in 8 positions with an adjustment range of 45 mm, and the mounting is soundproofed to minimize unwanted noise.

The heart of this mounting element is the Sigma UP320 concealed cistern. It offers front actuation and a 25-year spare parts warranty. This cistern is designed for tool-free installation and service work and is also condensation-insulated.

More than just a cistern: The Sigma concealed cistern

The Sigma concealed cistern included in this set scores with many advantages. In addition to simple and quick installation, it also offers a construction protection for the service opening, which can be mounted and cut to length without tools. In addition, the rinsing volume is adjustable and allows immediate rinsing when factory-set.

The water connection is located at the back/top in the center and the connecting hose to the angle valve can be screwed on without tools. This increases convenience during installation and maintenance. The lever handles are soundproofed and offer quick adjustment without tools.

Depending on your preference, you can choose a 2-flush with actuator plate Sigma50, Sigma20, Samba or Bolero or a 1-flush with actuator plate Sigma10.

The Geberit GIS wall-mounted WC installation element with Sigma concealed cistern combines convenience, flexibility and durability in a product that takes your bathroom to the next level.
