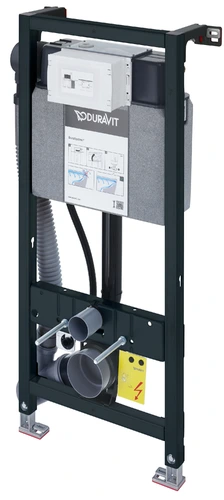

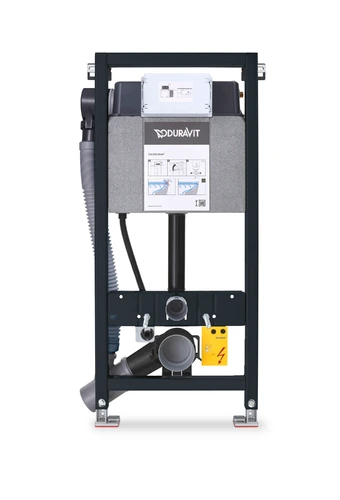

Duravit DuraSystem installation element for WC, dry construction, odour extraction, hygiene flushing, 500x1148 mm

• Duravit DuraSystem
• 1x drywall installation element for WC
• width 500 mm x depth 170 mm x height 1148 mm
• pre-assembled WC element for wall-hung toilet
• integrated hygiene flushing
• self-supporting
• for drywall installation
• suitable for planking with gypsum plasterboards
• powder-coated frame
• for WC ceramics with a projection of <- 625 mm
• height adjustable feet 0-240 mm
• SensoWash preparation
• electronic operation from the front
• metre tear and centre tear marking
• tool-free mounting of the transparent inspection protection plate
• Odour extraction with integrated fan
• Fan release electronically by means of person detection or manually via Actuator plate
• Leak-proof non-return flap
• Plenum box:
• Flush-mounted plenum box
• maximum flushing volume 9 l
• Filling height marking
• 2-quantity flushing technology
• adjustable flush volumes
• condensation water insulated
• Throttle for regulation of the irrigation flow
• Scope of delivery:
• Raw construction set incl. concealed installation power supply unit
• wall-hung toilet drainage bend
• Wall-WC-connection set
• Wall-WC mounting set
• Mounting accessories for lightweight stand construction and individual mounting
• Wall-WC-reduction for drain bend
• 2 cover caps

please order separately:
Actuator plate A2 #WD5003012000, interface set #100729 and connection set #100731
