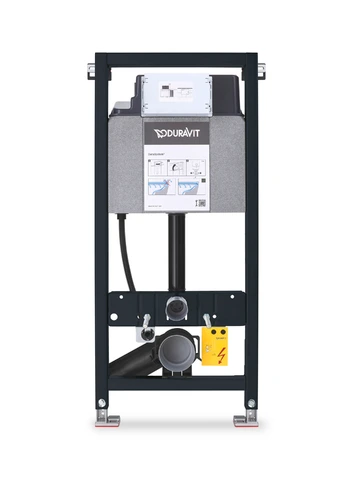

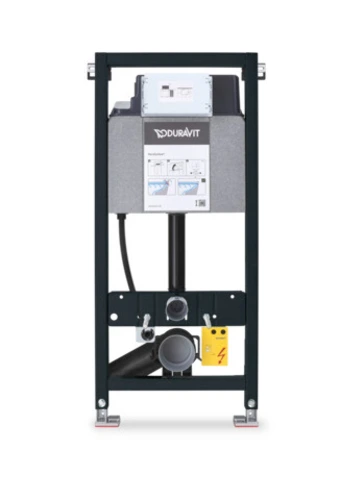

Duravit DuraSystem installation element standard for WC, drywall, 500x1148 mm

• Duravit DuraSystem
• 1x drywall installation element for WC
• width 500 mm x depth 170 mm x height 1148 mm
• pre-assembled WC element for wall-hung toilet
• self-supporting
• for drywall installation, suitable for planking with gypsum boards
• powder coated frame
• for ceramics with a projection of <- 625 mm
• height adjustable feet 0-240 mm
• SensoWash preparation
• mechanical operation from the front
• Flattenings for optimal access of pressing tools
• metre tear and centre tear markings
• tool-free mounting of the transparent inspection protection plate
• Plenum box:
• flush-mounted plenum box
• maximum dispensing volume 9l
• Filling height marking
• 2-quantity flushing technology
• adjustable flush volumes
• condensation water insulated
• Throttle for regulation of the irrigation flow
• Scope of delivery:
• Wall-mounted WC drainage bend
• Wall-mounted toilet connection set
• Wall-WC mounting set
• Mounting accessories for lightweight stand construction and for individual mounting
• 2 cover caps

please order separately:
A1 flush plate #WD5001 and connection set #100731
