Geberit Bambini GIS Set, play and wash landscape for taps, for 2 floor-standing taps

Geberit Bambini

• 1x GIS set for taps

Intended use

• For Bambini play and wash landscape
• For free-standing taps
• For installation in Geberit GIS support systems for pre-walls, partition walls or free-standing walls

Characteristics

• Galvanized crossbar
• Infinitely height-adjustable in the Geberit GIS support system
• Sound-insulated connection bend fixing
• Self-adhesive, fleece-coated sealing washer
• Protective plug for one-off pressure test with cold water up to a maximum of 15 bar / 1500 kPa
• Crossbar with two quick fasteners

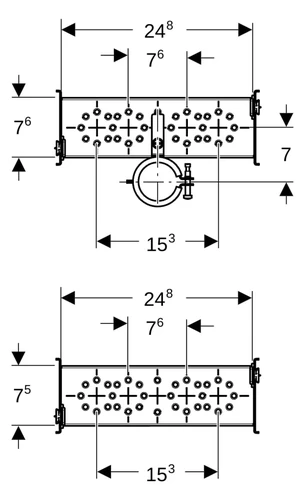

Technical properties

• Material: steel
• Width: 24.8 cm
• Height: 7.6 cm
• Depth: 4.5 cm
• Outer diameter: 50 mm
• Net weight: 3,000 kg

additional Additional scope of delivery

• Connection bracket R 1/2"
• Protective and marking plug
• Sealing washer
• Connection elbow made of PE-HD, D 50 mm, extended
• Seal D 40 / 32 mm
• Threaded rod M10
• Fastening clip
• Fastening material

Preliminary description Geberit GIS installation system

Geberit GIS is an installation system in

drywall construction and, as a component of

Geberit Quattro, it fulfills the building regulations

requirements for structural fire, sound and moisture protection and

protection and statics.

Fire protection

see Geberit Quattro GIS I 30, I 90, F 30 or F 90

Sound insulation

1. fulfills the standard sound insulation

for the external area in need of protection

(diagonally underlying room) in accordance with DIN 4109

with an installation noise level of

17 to 18 dB(A)

2. fulfills the increased requirements for the

external area in need of protection

(diagonally underlying room) according to DIN 4109- 5

with an installation noise level of

17 to 18 dB(A) and in accordance with VDI 4100:2007-08 with an

installation noise level with operating noises

of 20 to 23 dB(A)

3. partially fulfills the increased requirements in the

adjacent room of the own area requiring protection

area as a pre-wall in accordance with VDI 4100:2007-08 with an

installation noise level with operating noises

of 30 dB(A)

Statics

Geberit GIS fulfills with the

the associated system cladding and the installation elements

the requirements of DIN 4103 and the values required by VDI 6000

sheet 1, section 8 for weight loads to be

weight loads to be absorBette

for wall-mounted WC and bidet of 4000 N (400 kg),

1500 N (150 kg) for washbasins and urinals

and for support and grab rails of 1000 N (100 kg).

Suitable for installation area 1 (areas with low

areas with a small number of people) and installation area 2 (areas with

large gatherings of people) in accordance with DIN 4103-1:2015-06

Moisture protection

Geberit GIS fulfills with the

with the corresponding system cladding

requirements under building regulations according to § 13 of the

Model Building Code (MBO). For the

water exposure classes W2-1 and W3-1 in accordance with DIN 18534-1

the use of the cement-bound mineral building board

building board Geberit Aquapaneel Pro is required.

The decisive factor for moisture protection in this area

is the correct wall sealing.

Only surface sealing systems with proof of applicability

proof of suitability (AbP) are possible.

GIS installation system consists of non-pre

pre-assembled individual components for the support system,

mounting elements and the Geberit system cladding:

Support system

Essentially consisting of fully symmetrical galvanized

galvanized steel profiles (3.2 x 3.2 cm),

mounting brackets, connecting pieces and metal profile connectors

hand-lockable profile connectors.

Mounting elements

Pre-assembled mounting elements for holding

sanitary equipment items. The mounting elements

are suitable for accommodating wall-hung console loads for WC,

bidet, toilet and urinal. For the barrier-free

for barrier-free sanitary facilities, there are special

mounting elements that can take up console loads of up to 100 kg.

can be accommodated.

For the advertised product there is a

liability agreement between the manufacturer and the ZVSHK

and the ZVSHK and the BTGA.

System cladding

Consisting of 1.8 cm thick single layer

gypsum plasterboard panel for areas not regulated by building

regulated area for low and moderate water exposure

exposure to water (water exposure class W0-I and W1-

I) or 1.8 cm thick cement-bound mineral

building board for the area regulated by the building authorities

for high or very high water exposure

(water exposure class W2-I and W3-I) for the production of a tileable surface

a tileable surface in accordance with

quality level Q1. The system cladding is single-layered

with self-drilling panel screws - without cross joints

(including all cut-outs and drill holes for

cut-outs and drill holes for the sanitary equipment with

sealing and sound insulation elements). The

Building connections must be sealed with joint tape for

sound insulation on tiled or plastered surfaces and lightweight

and lightweight walls.

Processing

Processing and installation must be carried out in accordance with the

manufacturer-specific regulations in the technical

technical documentation and the installation instructions

compliance with the relevant standards.

The system limits must be observed during installation.
