Geberit

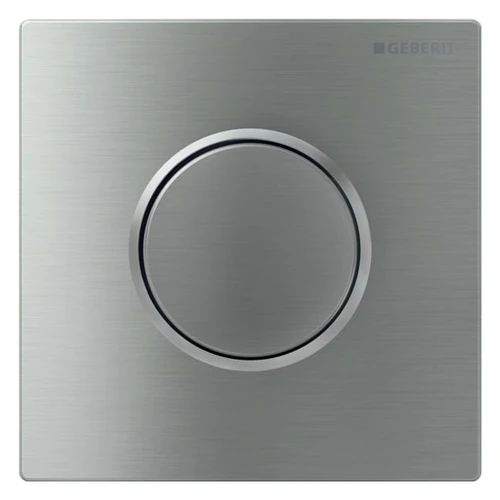

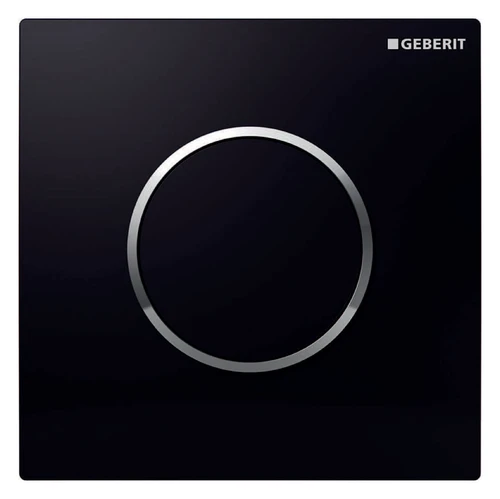

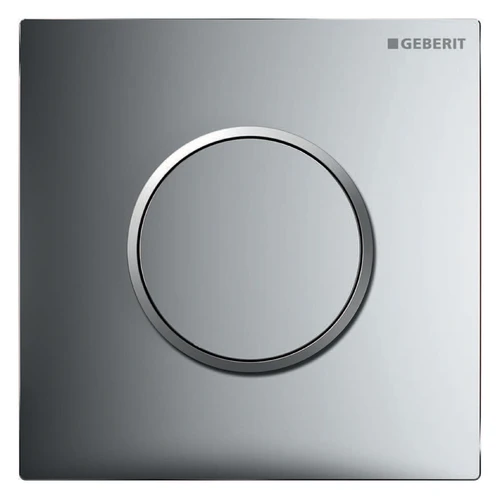

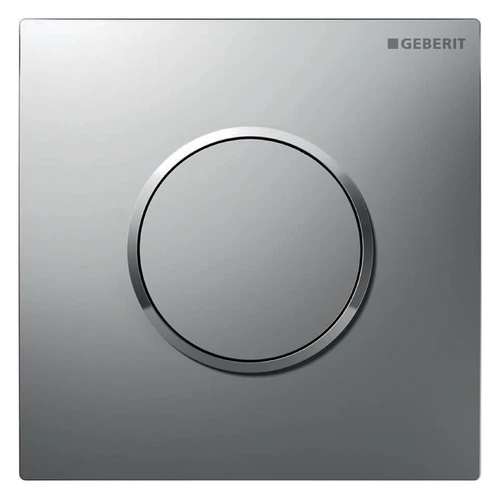

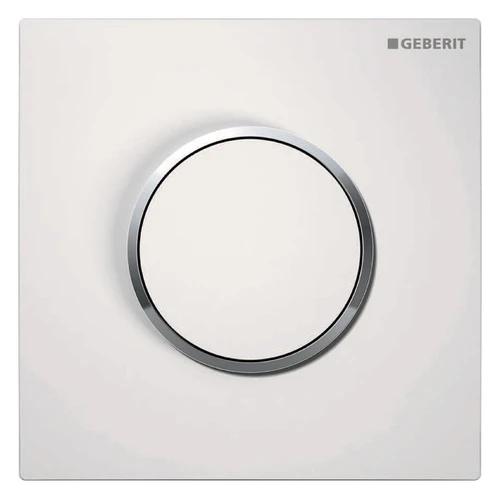

Geberit urinal control with pneumatic flush release, actuating plate type 10

More
Item No. 116.015.

189,32 €** 341,41 €* You save 152,09 €

incl. 19% VAT in addition.
Shipping index: 2 Points

Delivery and Shipping Costs

We charge an additional flat-rate packaging and processing fee of:
9,75 € for parcel shipping
23,08 € for shipment by freight carrier

From an order value of 2.500,00 € you will receive the goods free of shipping costs within Germany.

Maximum
shipping index *

Shipping costs incl.
VAT **

3

7,70 €

7

10,70 €

11

14,10 €

15

17,40 €

21

37,00 €

26

49,00 €

41

56,00 €

54

64,00 €

68

70,00 €

96

104,00 €

124

139,00 €

MAX

160,40 €

All shipping rates apply to mainland deliveries only. We only deliver to mainland destinations.
* The shipping index is used to calculate shipping costs. It corresponds to the item weight including the additional packaging material.

3-4 days
by parcel service
No processing costs
Optionen
- +

Assembly & documents

Assembly instructions Product data sheet Care

Free shipping

We offer free shipping within mainland Germany on orders of €2,500 or more.

Advice

Telephone specialist advice Monday–Friday until 6 pm..

Buyer protection

Trusted Shops certified. Enjoy comprehensive buyer and data protection.

Order check

Upon request, we will check every order for plausibility and completeness.

We also recommend the following products.

    Geberit urinal control with pneumatic flush release, actuating plate type 10

    Geberit urinal control with pneumatic flush release, actuating plate type 10

    Geberit urinal control with pneumatic flush release, actuating plate type 10

    More

    • Applications
    • For manual flushing of urinals
    • Für Geberit mounting elements for urinal with front operation
    • Für Geberit mounting elements for urinal with operation from above
    • For installation in Geberit urinal control kits (from year of construction 2009)
    • Scope of supply
    • Operating plate type 10
    • Pneumatic flush actuator, pre-mounted on mounting frame
    • pneumatic valve
    • fastening material



    • Technical Data
    • flow pressure:          100-800 kPa
    • Maximum test pressure water:              1600 kPa
    • Maximum test pressure air / inert gas:       300 kPa
    • Relative humidity:          < 100 %
    • Maximum water temperature:        30 °C
    • Active force:      < 12 N
    • flow at 100 kPa without flow limiter:    0.3 l/s
    • flow at 100 kPa with flow limiter:        0.24 l/s
    • Calculation flow rate:        0.3 l/s
    • Minimum flow pressure for calculated flow rate:       100 kPa
    • Spül time Setting range:      4/8/12 s



    • Properties
    • Operating plate with safety latch
    • Spül time adjustment with air (pneumatic)
    • Low trigger force
    • Low lifting motion
    • Spülausl;sung when releasing the control button
    • Spül quantity via throttle screw
    • of the raw kit can be reduced to 0.5 l per flush
    • Fitting group II according to DIN 4109



    Manufacturer:
    Geberit International AG
    Schachenstrasse 77
    CH-8645 Jona

    Email:
    sales.de@geberit.com
