Geberit urinal flush control with electronic flush actuation, mains operation, plastic cover plate, Basic

• Geberit
• 1 x urinal flush control with electronic flush actuation
• For the automatic flush release of urinals
• For installation in Geberit Duofix elements without fixed crossbar, for urinals (from year of construction 2013)

Scope of delivery

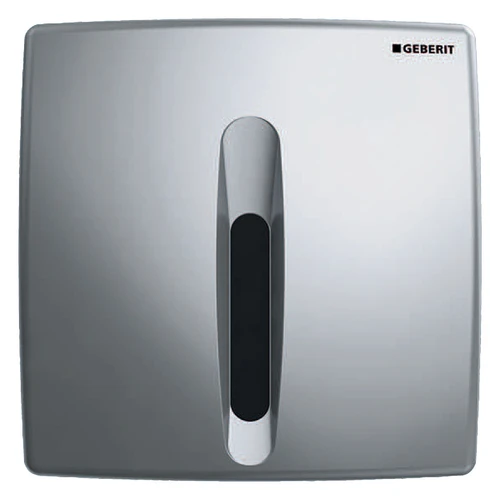

• Cover plate with IR window
• Fixing frame
• Infrared control
• Solenoid valve
• Power supply unit
• Fastening material

Technical data

• Protection class: IP45
• Rated voltage: 110-240 V AC
• Mains frequency: 50-60 Hz
• Operating voltage: 4.5 V DC
• Power consumption: < 0.5 W
• flow pressure: 100-800 kPa
• Maximum test pressure water: 1600 kPa
• Calculated flow rate: 0.3 l/s
• Storage temperature -20 - +70 °C
• Minimum flow pressure for calculation flow rate: 100 kPa
• Interval flushing Setting range: 1-168 h
• Dwell time setting range: 3-10 s
• Dwell time Factory setting: 7 s
• Flush time Setting range: 3-15 s
• Flush time Factory setting: 7 s

Properties

• Cover plate with safety catch
• IR sensor self-adjusting
• DYNAmic flush time adjustment
• Adjustable pre-rinse
• Can be switched to operation with cover urinal
• Power supply via mains connection
• Ready for operation after mains connection
• Valve closure function in the event of mains failure
