HANSA HANSAcompact concealed installation body for bath mixer, 3-hole, 565 mm

More
Item No. 53070300

720,72 €** 1.301,86 €* You save 581,14 €

incl. 19% VAT in addition.
Shipping index: 2 Points

Delivery and Shipping Costs

We charge an additional flat-rate packaging and processing fee of:
9,75 € for parcel shipping
23,08 € for shipment by freight carrier

From an order value of 2.500,00 € you will receive the goods free of shipping costs within Germany.

Maximum shipping index *

Shipping costs incl. VAT. **

3

8,50 €

7

14,90 €

11

19,90 €

15

29,90 €

21

49,90 €

26

79,90 €

68

109,90 €

124

139,90 €

240

179,90 €

MAX

199,90 €

All shipping rates apply to mainland deliveries only. We only deliver to mainland destinations.
* The shipping index is used to calculate shipping costs. It corresponds to the item weight including the additional packaging material.

3-4 days
by parcel service
No processing costs
- +

Assembly & documents

Assembly instructions Technical data sheet Product data sheet

Title

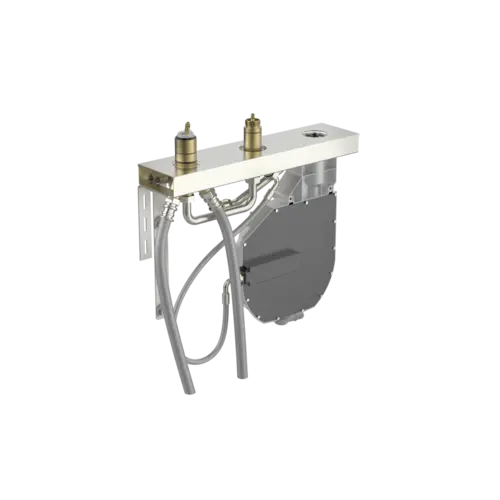

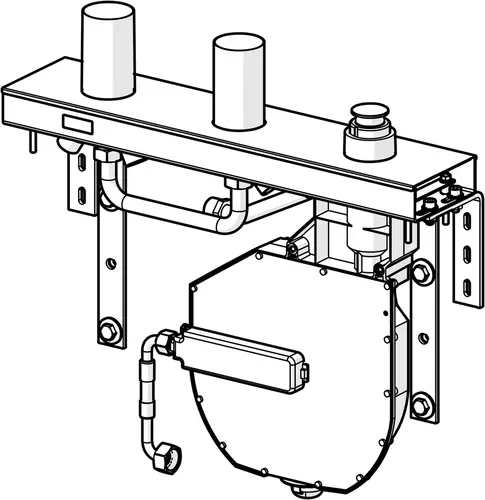

HANSA HANSAcompact concealed installation body for bath mixer, 3-hole, 565 mm

HANSA HANSAcompact concealed installation body for bath mixer, 3-hole, 565 mm

HANSA HANSAcompact concealed installation body for bath mixer, 3-hole, 565 mm

More

  • HANSA HANSAcompact
  • 1x concealed installation body
  • suitable for tubs

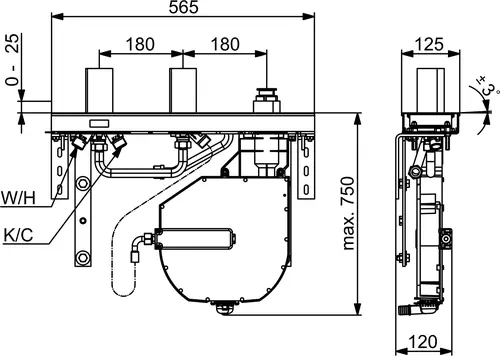

  • 565 mm
  • 3 - hole (tile edge installation)
  • Intrinsically safe against backflow in domestic use (according to DIN EN1717)
  • Leakage water drain in roll box with backflow protection
  • for remote tub inlet
  • Hot water supply: Maximum +70°C
  • Rotary diverter
  • pressure independent
  • Temperature limiter
  • Hot water lock adjustable (included in delivery)
  • Connection via flexible pressure hoses (G3/4)
  • Safety device (EN1717): EB
  • ø 4.0 control cartridge with ceramic sealing discs for water and temperature adjustment
  • Components: Rollbox with automatic hose return

Accessories: tub inlet and outlet fitting installation set 05160100

Manufacturer:
Hansa Armaturen GmbH
Sigmaringer Str. 107
DE-70567 Stuttgart

Email:
info@hansa.com
