Hansa

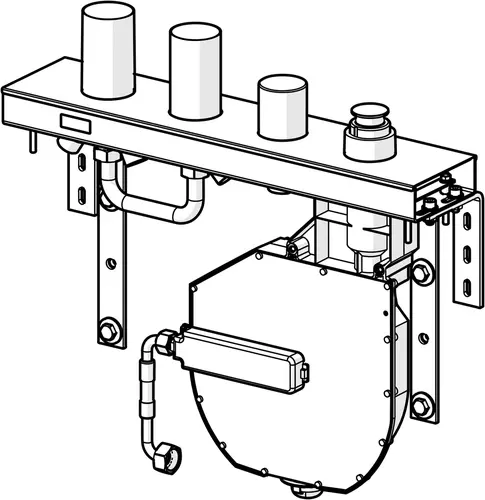

HANSA HANSAcompact concealed installation body for bath mixer, 4-hole, 565 mm

Product details
Item No. 53080300

670,44 € 705,73 €** 1.288,77 €* Save 618,33 €

incl. 19% VAT in addition.
Shipping index: 5 Points

Delivery and Shipping Costs

We charge an additional packaging and processing fee in the amount of:
9,75 € for parcel shipping
23,08 € for shipment by freight carrier

From an order value of 2.500,00 € you will receive the goods free of shipping costs within Germany.

Maximum
shipping index *

Shipping costs incl.
VAT. **

3

7,70 €

7

10,70 €

11

14,10 €

15

17,40 €

21

37,00 €

26

49,00 €

41

56,00 €

54

64,00 €

68

70,00 €

96

104,00 €

124

139,00 €

MAX

160,40 €

All shipping costs only apply to the mainland. Deliveries are only possible to the mainland.
* The shipping index is used to determine the shipping costs. This is the item weight including the additional packaging material.

3-4 days
by parcel service
No processing costs
- +

Assembly & documents

Assembly instructions Technical data sheet Product data sheet

Title

Free shipping

From an order value of € 2,500 we ship free of charge within Germany (mainland).

Specialist advice

Specialist advice by phone from Monday to Friday until 6 pm.

Buyer protection

Trusted Shops certified. Enjoy full buyer and data protection.

Order check

We check every order for compatibility and completeness on request!

We recommend the following products

HANSA HANSAcompact concealed installation body for bath mixer, 4-hole, 565 mm

HANSA HANSAcompact concealed installation body for bath mixer, 4-hole, 565 mm

HANSA HANSAcompact concealed installation body for bath mixer, 4-hole, 565 mm

Product details

  • HANSA HANSAcompact
  • 1x concealed installation body
  • suitable for tubs
  • DN20

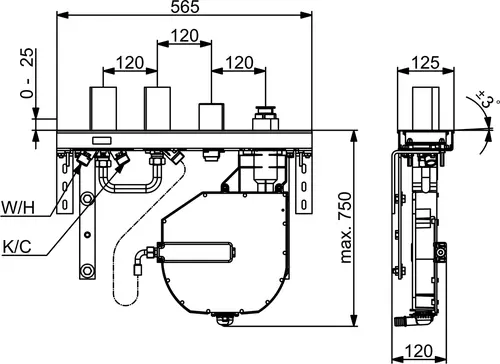

  • 565 mm
  • 4 - hole (tile edge installation)
  • Intrinsically safe against backflow in domestic use (according to DIN EN1717)
  • Leakage water drain in roll box with backflow protection
  • Hot water supply: Maximum +70°C
  • Rotary diverter
  • pressure independent
  • Temperature limiter
  • Hot water lock adjustable (included in delivery)
  • Connection via flexible pressure hoses (G3/4)
  • Safety device (EN1717): EB
  • ø 4.0 control cartridge with ceramic sealing discs for water and temperature adjustment
  • Components: Rollbox with automatic hose return

Accessories: Extension set, 30 mm, 59914626 / Extension set, 30 mm 59914627 (to be ordered separately)

Manufacturer:
Hansa Armaturen GmbH
Sigmaringer Str. 107
DE-70567 Stuttgart

E-mail:
info@hansa.com
