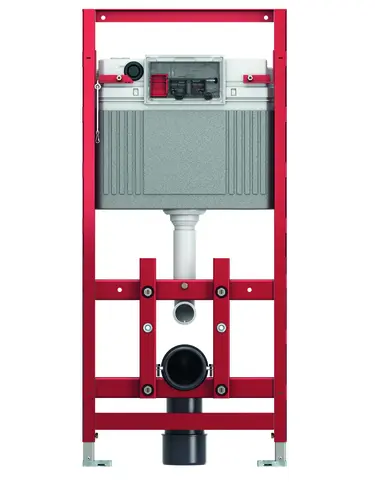

TECElux WC module 100, height 1120 mm,

TECElux WC module 100, construction height 1120 mm

Dry construction element for fastening to TECE profile tubes or

for installation in metal or wooden structures and as a front wall or corner module.

 Modul:

• self-supporting mounting frame with powder-coated surface
• incl. chute for cleaning rods.
• depth-adjustable receptacle for upper Betteding glass plate and lower WC glass plate
• two adjustable feet for a floor structure of 0–200 mm
• two retaining bolts and nuts M 12
• mount for WC ceramics with spacing 180 mm
• WC drain bend DN 90 with transition support DN 90/100, material PP
• Ück transition support also suitable for horizontal installation
• WC-connection set DN 90, including safety protection plug large structural protection

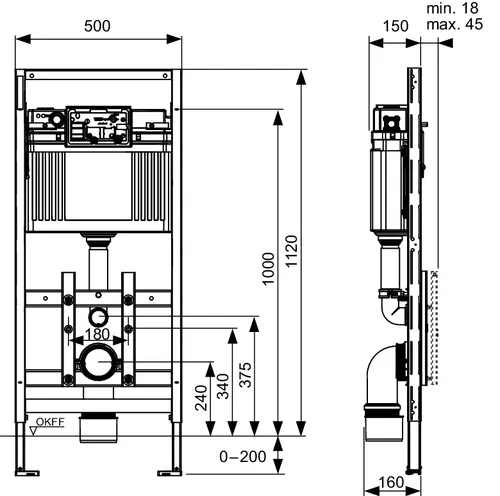

• suitable for wall constructions up to 45 mm Dimensions 1120 mm x 500 mm x 140 mm

Please order separately:

• upper operating glass plate
• lower WC glass panel
• Fastening for single pre-wall, corner or wooden post installation
