Geberit

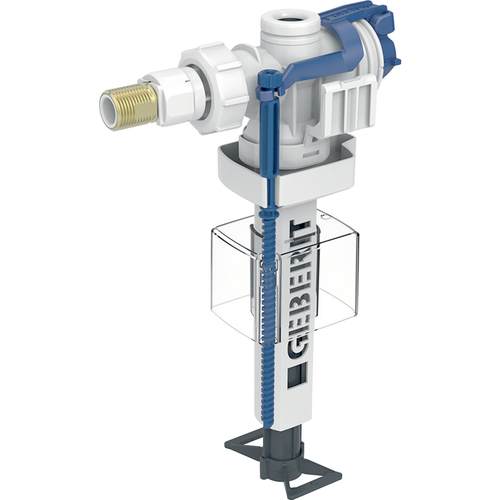

Geberit type 383 filling valve, for wall-mounted cisterns

More
Item No. 240.700.00.5

19,18 € 20,19 €** 46,53 €* You save 27,35 €

incl. 19% VAT in addition.
Shipping index: 3 Points

Delivery and Shipping Costs

We charge an additional flat-rate packaging and processing fee of:
9,75 € for parcel shipping
23,08 € for shipment by freight carrier

From an order value of 2.500,00 € you will receive the goods free of shipping costs within Germany.

Maximum shipping index *

Shipping costs incl. VAT. **

3

8,50 €

7

14,90 €

11

19,90 €

15

29,90 €

21

49,90 €

26

79,90 €

68

109,90 €

124

139,90 €

240

179,90 €

MAX

199,90 €

All shipping rates apply to mainland deliveries only. We only deliver to mainland destinations.
* The shipping index is used to calculate shipping costs. It corresponds to the item weight including the additional packaging material.

2 weeks
by parcel service
No processing costs
- +

Assembly & documents

Assembly instructions

Title

Geberit type 383 filling valve, for wall-mounted cisterns

Geberit type 383 filling valve, for wall-mounted cisterns

Geberit type 383 filling valve, for wall-mounted cisterns

More

  • Geberit
  • 1 x type 383 filling valve
  • for wall-mounted cisterns

Intended use

  • for grey water (rainwater) with pH value 6.0-9.5, if a filter system is used
  • for ceramic cisterns, for drinking water

Product details

  • Adjustable fill level
  • Threaded nipple made of brass
  • Water connection 3/8"
  • Low-noise according to fitting group I (DIN 4109)
  • flow pressure: 10-1000 kPa
  • Line noise at 3 bar: 7 dB(A)
  • Line noise at 5 bar: 13 dB(A)
  • Storage temperature: ≤ 40 °C
  • Max. water temperature: 25 °C
  • flow rate at 0.5 bar: 0.06 l/s.
  • flow rate at 3 bar: 0.16 l/s
  • Minimum flow pressure for calculation flow rate: 10 kPa
  • Calculation flow rate: 0.09 l/s.

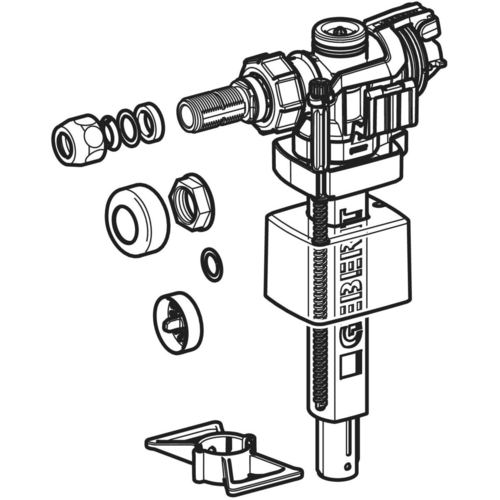

  • Scope of delivery:
  • Filters for nipple / armoured hose types 350 and 380 Filling valves
  • Cone compression fitting

Manufacturer:
Geberit International AG
Schachenstrasse 77
CH-8645 Jona

Email:
sales.de@geberit.com
