Geberit

Geberit urinal flush control with pneumatic flush actuation, flush plates Mambo

More
Item No. 116.013.FW.1

203,55 € 214,26 €** 386,87 €* You save 183,32 €

incl. 19% VAT in addition.
Shipping index: 2 Points

Delivery and Shipping Costs

We charge an additional flat-rate packaging and processing fee of:
9,75 € for parcel shipping
23,08 € for shipment by freight carrier

From an order value of 2.500,00 € you will receive the goods free of shipping costs within Germany.

Maximum shipping index *

Shipping costs incl. VAT. **

3

8,50 €

7

14,90 €

11

19,90 €

15

29,90 €

21

49,90 €

26

79,90 €

68

109,90 €

124

139,90 €

240

179,90 €

MAX

199,90 €

All shipping rates apply to mainland deliveries only. We only deliver to mainland destinations.
* The shipping index is used to calculate shipping costs. It corresponds to the item weight including the additional packaging material.

1-2 weeks
by parcel service
No processing costs
- +

Geberit urinal flush control with pneumatic flush actuation, flush plates Mambo

Geberit urinal flush control with pneumatic flush actuation, flush plates Mambo

Geberit urinal flush control with pneumatic flush actuation, flush plates Mambo

More

  • Geberit
  • 1 x urinal flush control with pneumatic flush actuation
  • For manual flush release of urinals
  • For Geberit mounting elements for urinals with front actuation
  • For Geberit mounting elements for urinals with actuation from above
  • For installation in installation kits for Geberit urinal flush controls (from year of manufacture 2009)

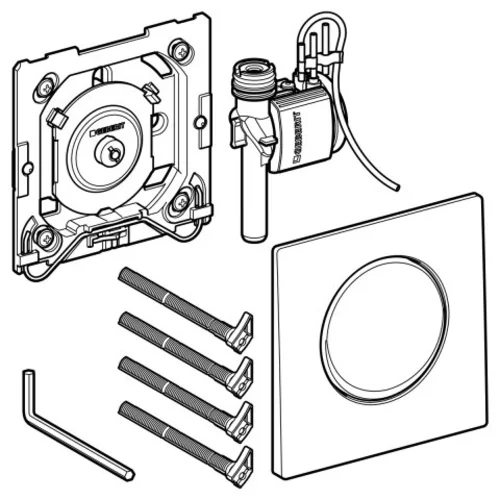

Scope of delivery

  • Mambo flush plates
  • Pneumatic flush actuation, pre-assembled on mounting frame
  • Pneumatic valve
  • Fastening material

Technical specifications

  • flow pressure: 100-800 kPa
  • Maximum test pressure water: 1600 kPa
  • Maximum test pressure air / inert gas: 300 kPa
  • Relative humidity: < 100 %
  • Maximum water temperature: 30 °C
  • Actuating force: < 12 N
  • flow rate at 100 kPa without flow limiter: 0.3 l/s
  • flow rate at 100 kPa with flow limiter: 0.24 l/s
  • Calculation flow rate: 0.3 l/s
  • Minimum flow pressure for calculation flow rate: 100 kPa
  • Flushing time setting range: 4/8/12 s

Features of the flush plate

  • Actuator plates with safety latch
  • Flush time setting with air nozzles (pneumatic)
  • Low triggering force
  • Low stroke movement
  • Flush is triggered when the actuation button is released
  • Flush volume via throttle screw
  • of the body kit down to 0.5 litres per flush
  • Fitting group II according to DIN 4109
  • Colour: brushed

Manufacturer:
Geberit International AG
Schachenstrasse 77
CH-8645 Jona
