Geberit urinal flush control with pneumatic flush actuation, actuator plates type 50

• Geberit
• 1 x urinal flush control with pneumatic flush actuation
• For manual flush release of urinals
• For Geberit mounting elements for urinals with front actuation
• For Geberit mounting elements for urinals with actuation from above
• For installation in installation kits for Geberit urinal flush controls (from year of manufacture 2009)

Scope of delivery

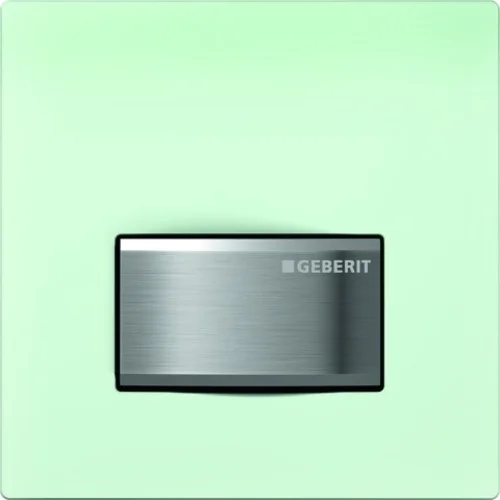

• Type 50 actuator plates
• Pneumatic flush actuation, pre-assembled on mounting frame
• Pneumatic valve
• Fastening material

Technical Data

• flow pressure: 100-800 kPa
• Maximum test pressure water: 1600 kPa
• Maximum test pressure air / inert gas: 300 kPa
• Relative humidity: < 100 %
• Maximum water temperature: 30 °C
• Actuating force: < 12 N
• flow rate at 100 kPa without flow limiter: 0.3 l/s
• flow rate at 100 kPa with flow limiter: 0.24 l/s
• Calculation flow rate: 0.3 l/s
• Minimum flow pressure for calculation flow rate: 100 kPa
• Flushing time setting range: 4/8/12 s

Features of the flush plate

• Actuator plates with safety latch
• Flush time setting with air nozzles (pneumatic)
• Low triggering force
• Low stroke movement
• Flush is triggered when the actuation button is released
• Flush volume via throttle screw
• of the body kit down to 0.5 litres per flush
• Fitting group II according to DIN 4109
