TECEprofil WC module with Uni cistern, height 820mm

More
Item No. 9300301

243,90 €** 612,14 €* You save 368,24 €

incl. 19% VAT in addition.
Shipping index: 2 Points

Delivery and Shipping Costs

We charge an additional flat-rate packaging and processing fee of:
9,75 € for parcel shipping
23,08 € for shipment by freight carrier

From an order value of 2.500,00 € you will receive the goods free of shipping costs within Germany.

Maximum shipping index *

Shipping costs incl. VAT. **

3

8,50 €

7

14,90 €

11

19,90 €

15

29,90 €

21

49,90 €

26

79,90 €

68

109,90 €

124

139,90 €

240

179,90 €

MAX

199,90 €

All shipping rates apply to mainland deliveries only. We only deliver to mainland destinations.
* The shipping index is used to calculate shipping costs. It corresponds to the item weight including the additional packaging material.

1-2 weeks
by parcel service
No processing costs
- +

Assembly & documents

Assembly instructions

Title

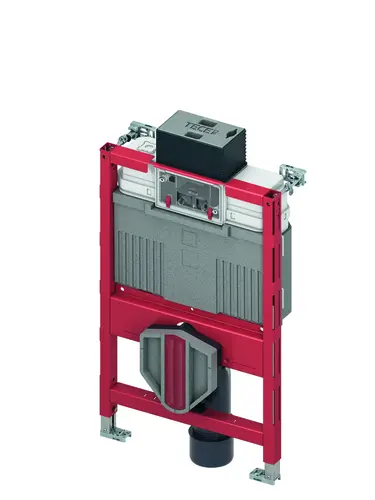

TECEprofil WC module with Uni cistern, height 820mm

TECEprofil WC module with Uni cistern, height 820mm

TECEprofil WC module with Uni cistern, height 820mm

More

  • TECEprofil
  • 1x WC module with uni cistern

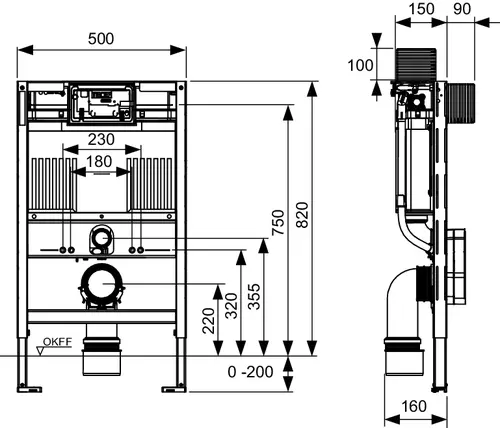

  • construction height 820 mm
  • Including "easy fit" flush plate mounting and empty pipe for connecting electronic shower toilets
  • For mounting on TECEprofil profile pipes or as pre-wall or corner module

Uni cistern for actuation from the front or top:

  • Safety tank made of impact-resistant plastic
  • Cistern completely pre-assembled and sealed
  • Cistern connection with external thread R 1/2" laterally compatible with quick adapters
  • 10 liter tank volume, 6 liter preset standard flush volume
  • condensation water insulated
  • for TECE flush plates and toilet fittings
  • Can be used as a single or dual flush cistern
  • Installation tunnel for service opening, can be shortened without tools



Module frame:

  • self-supporting, powder-coated
  • two retaining bolts and nuts M 12
  • two depth-adjustable module fasteners
  • WC drain bend with transition adapter
  • transition adapter also suitable for horizontal installation
  • WC connection set
  • WC connection box including rough-in protection and empty pipe for universal shower-toilet connection

To be ordered separately:

  • WC actuating plate
  • Insertion shaft for cleaning rods (optional, only when operated from the front)
  • TECEone upgrade set dry construction (optional)







Manufacturer:
TECE GmbH
Hollefeldstr. 57
DE-48282 Emsdetten
